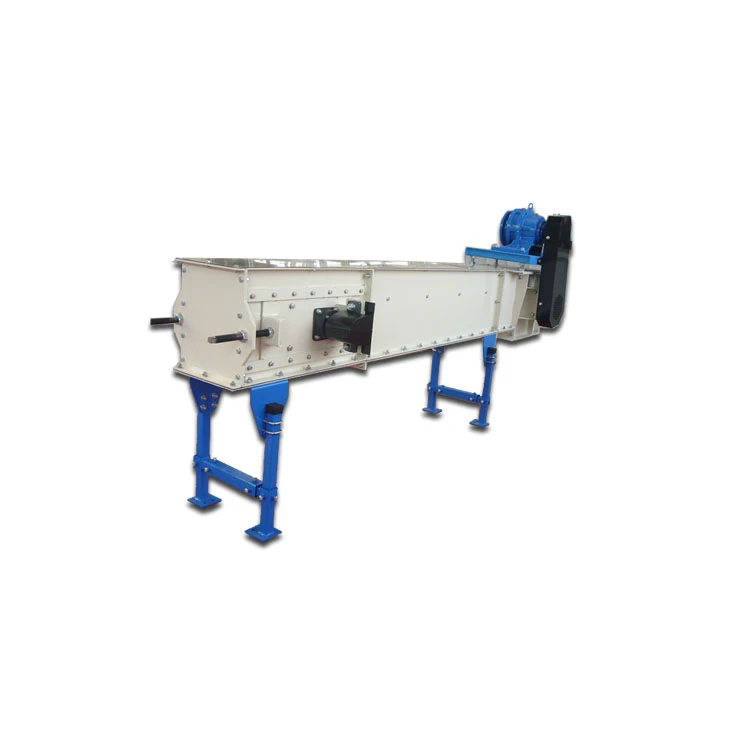

U-скребковый цепной конвейер

Flour drag conveyor

ТГССУ У-Ловковый скребковый конвейер

Применяется для горизонтальной или небольшой наклонной (менее или равной 15 градусов) транспортировки сыпучих материалов.

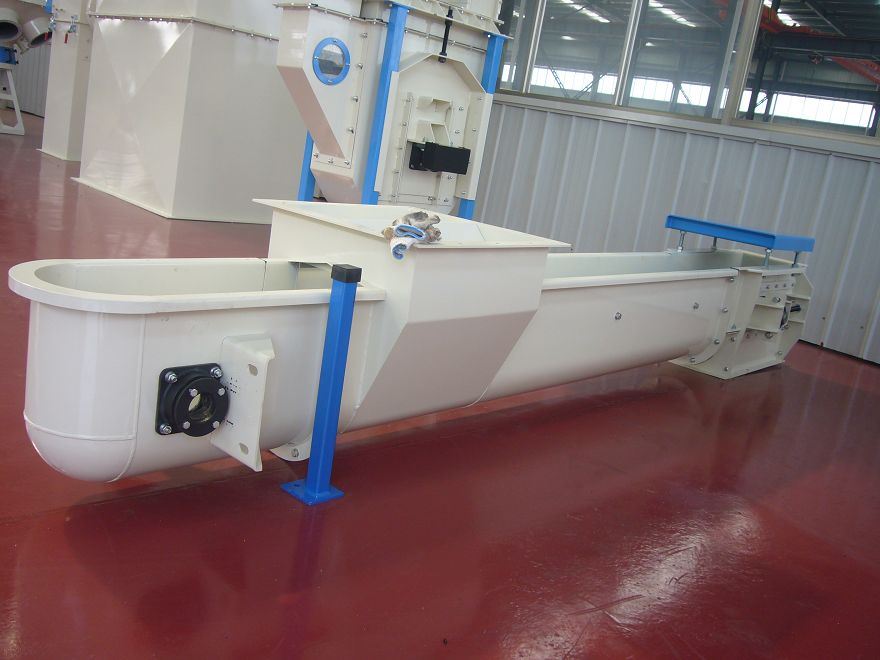

U trough structure and wear resistant paddles made of plastic, no residue and long service life.

Широко используется при обработке кормов, зерна и премиксов-.

Характеристики производительности

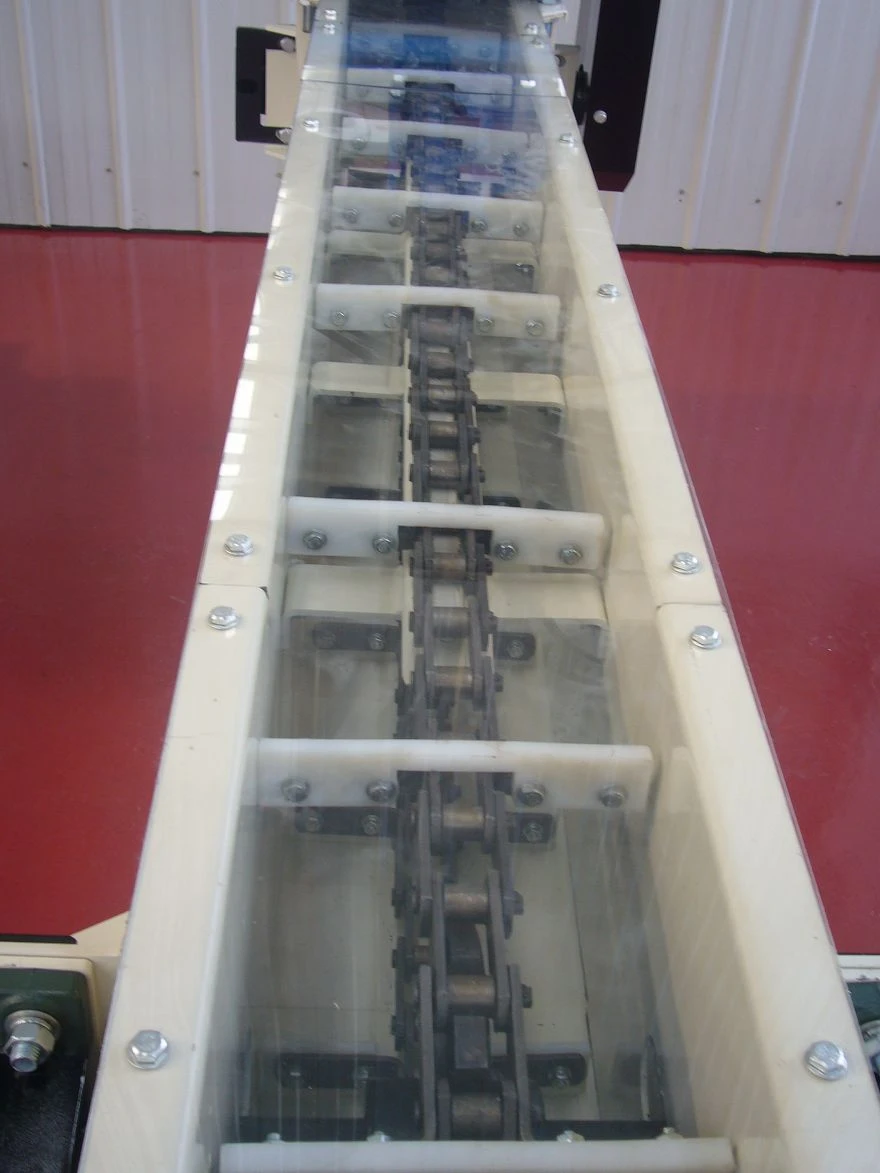

TGSU drag conveyor is generally applicable for conveying powdery material, its bottom is a welded U-type structure, and drag  is made of engineering plastics, which is of low noise, less wear, no residues and long service life;

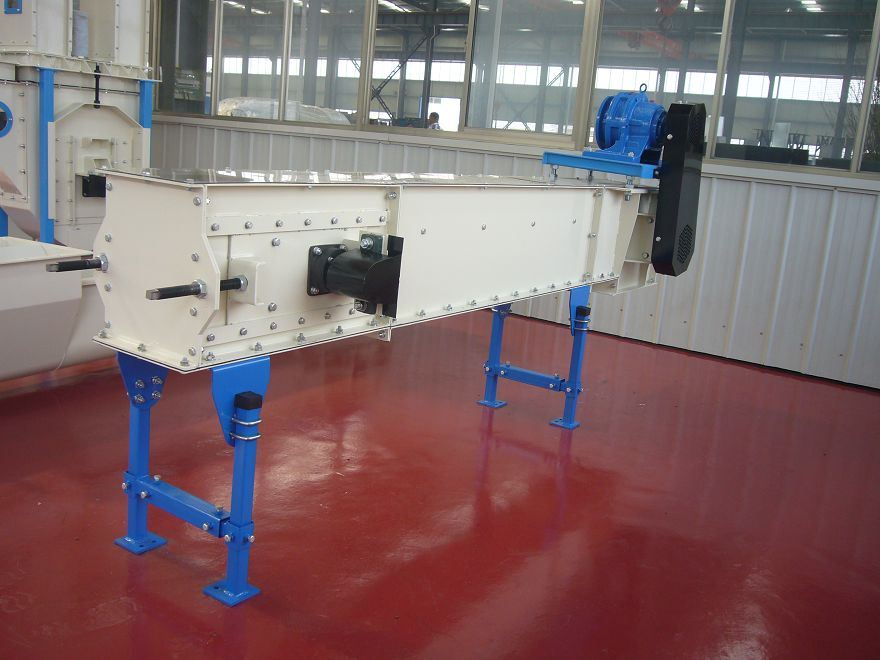

TGSS drag conveyor is generally used for conveying granular material, its bottom is connected by bolts, drag  is made of engineering plastics, which is of low noise and less wear; base plate and side plate can be conveniently replaced and service life is long;

It is of simple structure, less floor area and convenient installation, can be used on a narrower place with no special requirements on working environment;

Running is safety and reliable, operation and maintain are easy and convenient with no complicate control technology;

Sealing performance is good, material is conveyed in sealed trough with no splashing and leakage, it is dust proof, water proof and explosion proof, so that pollution on material can be avoided, working condition of workers is perfected and environmental pollution is avoided;

Устройство безопасности машины

Material blocking alarm device is designed for preventing material from blockage at outlet arising from certain reasons, it is mainly composed of 1 (gate body), 2 (support frame) and 3 (limit switch). When material is blocked in the lower part of the system, the gate body 1 of explosion-proof vent will be opened by force along with increase of material, and then limit switch 3 will be triggered, it will send out signal, motor stops operating, and then material blocking information will be fed back to the main control room, so that conveying chains are prevented from damage effectively. After the material is unblocked, the limit switch shall be reset, and then the equipment can be put into operation again.

технические параметры
